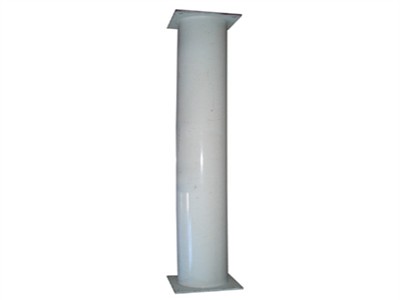

型号Model                                                                    TQWTF-11180-2.6H

频率范围Frequency Range                                             2500-2700(MHz)

输入阻抗Input Inpedance                                              50(Ω)

驻波比系数VSWR                                                            <1.5

增益Gain                                                                       11(dBi)

半功率波束(3dB)HPBW                                                   8°E-plane      180°H-plane

前后比F/B                                                                      >12(dB)

功率容量Maximum Power                                              500(W)

极化方式Polarization                                                     水平极化 Horizontal Polarization

接口Connector Type                                                     N-K

闪电保护Lighting Protection                                          直接接地 Direct Ground

抗风Wind Velocity                                                         200(km/h)

长度Length                                                                  875(mm)

重量Weight                                                                  5(Kg)
