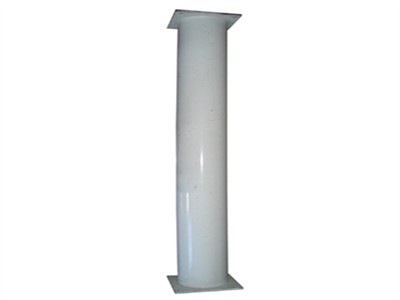

型号 Model                                                                        TQWTF-13180-2.6H

频率范围FrequencyRange                                                   2500-2700(MHz)

输入阻抗Input Impedance                                                   50(Ω)

驻波比系数VSWR                                                                  <1.5

增益Gain                                                                             13(dBi)

半功率波束(3dB)HPBW                                                         180°H-plane   4°E-plane

前后比F/B                                                                            >12dB

功率容量Maximum Power                                                    500(W)

极化方式Polarization                                                            水平极化Horizontal Polarization

接口Connector Type                                                            N-K

闪电保护Lighting Protection                                                 直接接地Direct Ground

抗风Wind Velocity                                                                200(km/h)

长度Length                                                                         1170(mm)

重量Weight                                                                          6.5(Kg)
