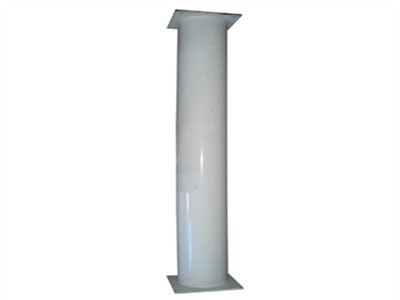

型号 Model                                                                              TQWTF-15180-2.6V

频率范围FrequencyRange                                                         2500-2700(MHz)

输入阻抗Input Impedance                                                         50(Ω)

驻波比系数VSWR                                                                       <1.5

增益Gain                                                                                  15(dBi)

半功率波束(3dB)HPBW                                                              180°H-plane   4°E-plane

前后比F/B                                                                                  >12dB

功率容量Maximum Power                                                          500(W)

极化方式Polarization                                                                 垂直极化Vertical Polarization

接口Connector Type                                                                 N-K

闪电保护Lighting Protection                                                      直接接地Direct Ground

抗风Wind Velocity                                                                     200(km/h)

长度Length                                                                              1460(mm)

重量Weight                                                                              8(Kg)
