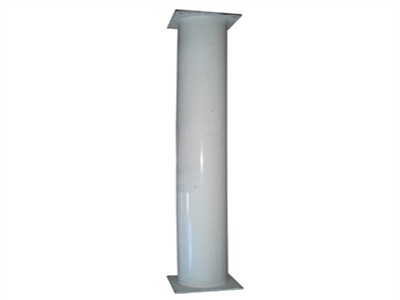

型号 Model                                                                         TQWTF-11-2.6V

频率范围FrequencyRange                                                    2500-2700(MHz)

输入阻抗Input Impedance                                                   50(Ω)

驻波比系数VSWR                                                                  <1.5

增益Gain                                                                             11(dBi)

半功率波束(3dB)HPBW                                                          6°E-plane

功率容量Maximum Power                                                     500(W)

极化方式Polarization                                                            垂直极化Vertical Polarization

接口Connector Type                                                             N-K

闪电保护Lighting Protection                                                 直接接地Direct Ground

抗风Wind Velocity                                                                200(km/h)

长度Length                                                                          1060(mm)

重量Weight                                                                         5.5(Kg)
