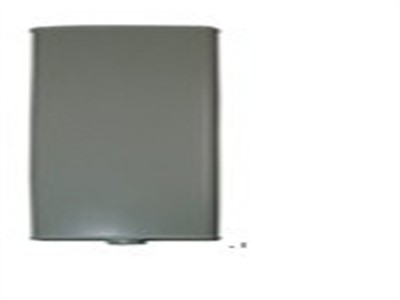

Base Panel Directional Antenna
电气性能Electrical specifications
|
型号Model |
TQWTD-12065-08/09V |
|
频率范围Frequency Range |
806-960(MHz) |
|
输入阻抗Input Impedance |
50(Ω) |
|
驻波比系数VSWR |
<1.5 |
|
增益Gain |
12(dBi) |
|
半功率波束(3dB)HPBW |
65°H-plane 30°E-plane |
|
前后比F/B |
>25(dB) |
|
功率容量Maximum Power |
500(W) |
|
极化方式Polarization |
垂直极化Vertical Polarization |
|
交调PIM |
<-107(dBm) |
|
接口Connector Type |
7/16或N-K |
|
闪电保护Lighting Protection |
直接接地Direct Ground |
|
环境温度Ambient temperature |
-40℃— +60℃ |
|
机械特性Mechanical specifications |
|
天线罩材料Radome Material |
ABS |
|
天线罩颜色Radom Colour |
灰色Ashen |
|
抗风Wind Velocity |
200(km/h) |
|
高/宽/厚Height/Width/Depth |
660/280/80(mm) |
|
重量Weight |
7(kg) |
|
抱杆直径Hold Pole Diameter |
Φ50-Φ110(mm) |
|
